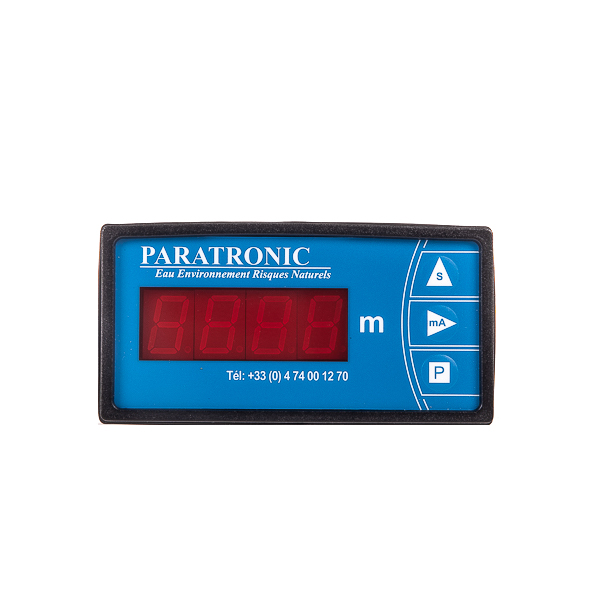

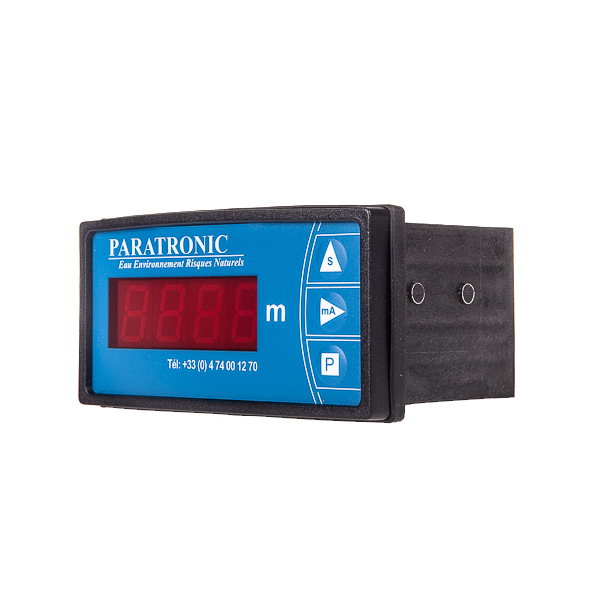

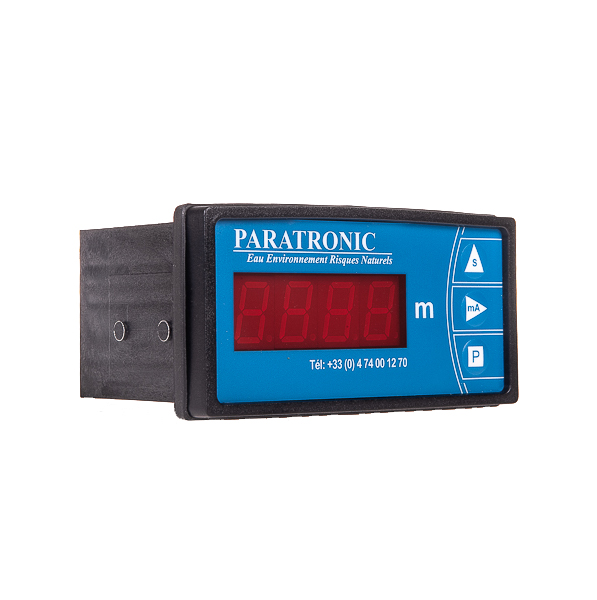

LED display - 1 Analogue 4/20 mA input, 1 relay output.
Self-powered by the measuring loop, the IMRAUTO indicator is used to display a measuring signal from a 4/20 mA sensor.

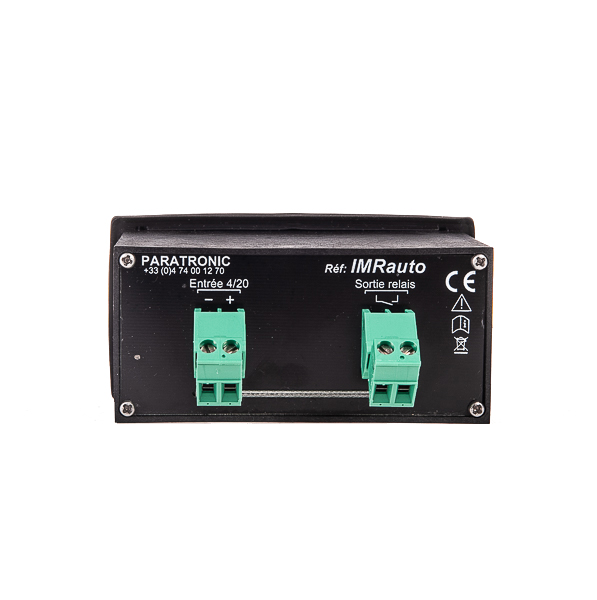

It also has 1 configurable relay output.
Easily integrated into an existing measurement chain, it can be mounted on the front panel (on the door) of a cabinet or case or on DIN rail (DIN rail mounting kit optional).
2 parameterizable thresholds or fault indication.
Flush-mounted box 48 x 96 mm (on DIN rail as an option).
Display unit: m (other units optional).
CE
Fast delivery
Manufacture PARATRONIC workshop, France
