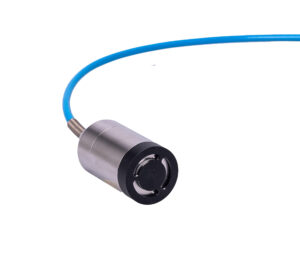

SNP level probe PARATRONIC
The SNP sensor is a high-precision submersible piezometric level sensor (pressure measurement). It was specifically developed for measuring low water levels or low pressures (up to a maximum of 1 bar).
Thanks to its durability, it is ideal for:
High-flow effluents: Pumping stations, storm water overflows, or wastewater systems where fluid conditions are challenging.
The SNP sensor is extremely flexible. Its measurement range (or full scale) extends from 0 to 0.5 meters and from 0 to 10 meters of water column. This modular design ensures excellent resolution and maximum accuracy, even for level variations of just a few dozen centimeters.
This is one of the SNP’s key strengths: it is fully customizable.
You have two options:
When placing your order, simply specify the desired full scale (in meters or bars, for example, 0–1 bar), and we will deliver a product that is ready to use.
You can adjust the sensor’s scale or behavior yourself, either in the field or in the workshop. To do so, simply use our ADP USB box, the CAB USB-B cable, and our free IHM Capteurs software (available for download without a license on our website). This allows you to configure a standard 4–20 mA output signal or an inverted 20–4 mA signal.
The SNP sensor uses our proprietary CABSOND cable. Like traditional piezometric sensors, the signal is transmitted via a two-wire connection without a venting capillary tube. Additionally, for applications in highly corrosive environments or those subject to high mechanical stress, a triple-jacketed CABFOR reinforced cable with Kevlar cord can be provided upon request.
To ensure long-term resistance to raw water and heavily contaminated effluents, the body of the SNP probe is made entirely of passivated 316L stainless steel. This choice of material provides excellent durability, ensuring a long service life for the equipment, even when submerged 24 hours a day in harsh conditions.
The SNP sensor integrates very easily into all existing systems (controllers, data loggers, data acquisition stations) thanks to proven industry standards:
The SNP level sensor comes with a 1-year warranty.
PARATRONIC's after-sales service is carried out in France and within a very short time. Our efficient service is supported by our expertise and our dedicated contacts.
Like all PARATRONIC sensors, lightning protection devices, and data acquisition stations, the SNP probe is entirely designed, manufactured, and tested at our factory in Reyrieux, in the Ain department (France).
By choosing SNP, you benefit from the expertise of a French manufacturer, rigorous 100% quality control at the factory, and highly responsive local technical support in the field and on-site (response within 24 hours).
Our teams of experts and technical sales representatives are available to assist you in selecting cable lengths (available in lengths of up to 100 meters or more) and defining your measurement ranges.
Please feel free to contact us for more information.
